Repairing GE "Constant On" Lights

GE markets a series of lights called "Constant On". When they work, they are reasonable lights. Unfortunately, of my twenty-odd strands, one was dead right out of the box. Because the strand was purchased two years ago, I couldn't return it to the store from which I purchased it. GE gives a two year warranty on their Christmas lights. The only problem is that the lights cost less than a third the one-way shipping cost even by ground, making it completely unreasonable to return the set to them for repair. In short, I was stuck with a set in which only half the bulbs lit, and there was little I could do besides fix it myself (or use the set as replacement bulbs for life).

The basic design of these sets differs form other sets in that the socket has two metal contacts that are spring loaded. If a bulb is removed, these contacts spring together and complete the circuit. In theory. In practice, the sockets are not quite designed right. Instead of having a period of time where the bulb is in the socket but the socket is shorted around the bulb, the socket contacts actually fail to close until well after the bulb's wires are no longer making contact with the socket. As such, this is more a gimmick than a usable feature, IMHO.

The fundamental problem with these sets---and this is a design problem---is that they have a special bulb, which GE refers to as a "current limiting" bulb. If this bulb fails, the entire set (or half the set) goes dead. This bulb is not designed to be removable or serviceable (particularly bad for owners of GE's pre-lit trees), and the warranty (useless as it is) is explicitly voided if you remove this bulb. I therefore naturally immediately suspected this bulb was at fault, as it struck me as the sort of part that is designed to fail as a crude means of planned obsolescence....

The first step in the repair was to confirm that the bulb was bad. First, I built a "test bulb" by taking a bulb out of its base and replacing it with a wire that only contacts one side. This allowed me to get reliable contact with the electrical contact in the socket while breaking the contact from one side of the socket to the other.

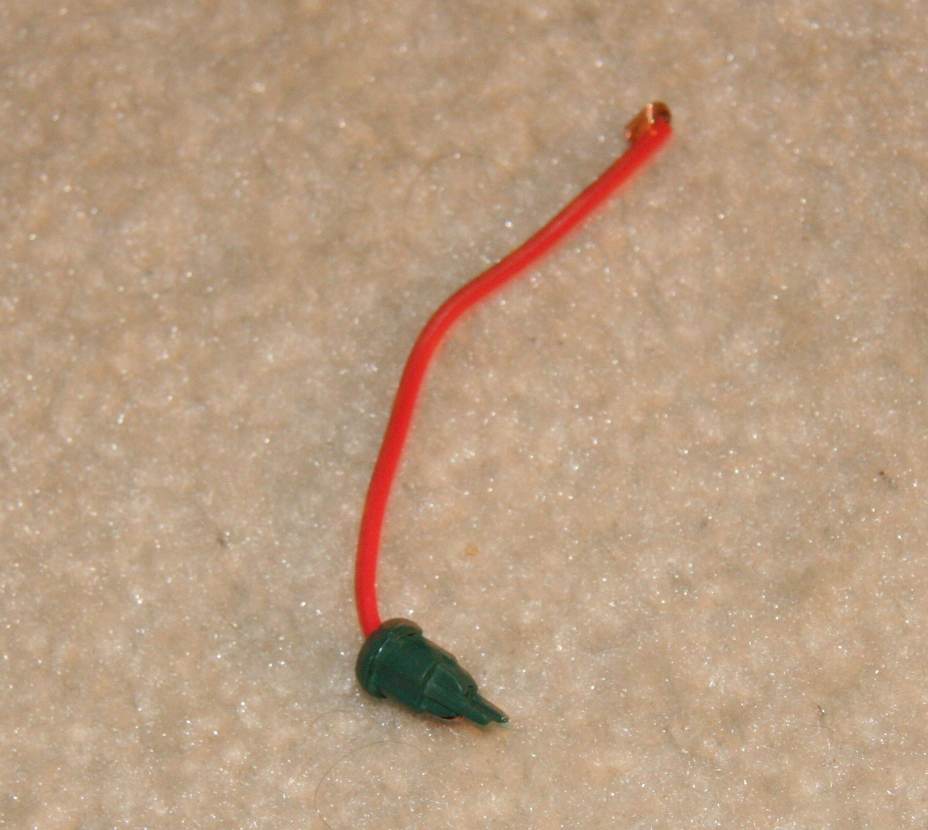

test "bulb"

Next, I measured the resistance from the plug through the working half of the set using an ohmmeter. I then repeated across the non-working half of the set all the way up to the socket before the so-called "current limiting" bulb. The resistance was about the same, so clearly there were no electrical breaks or failed bulbs causing the problem. This pretty squarely placed the blame on the "current limiting" bulb.

The next step was to determine what this so-called "current limiting" bulb really was. To do this, I measured the resistance across a single standard bulb and the resistance across the working current-limiting bulb on the first half of the string. Hmm. About the same, or a least within the +/- 15% tolerances typical of cheaply-made electronics. So basically, it appears to be just a glorified fuse. In other words, "current limiting" is a misnomer, unlike other types of hardware (e.g. LEDs) where a device actually does limit the flow of current....

Now came the hard part. The bulb is not designed to come out. Its base is recessed into the socket so that you can't grab it usefully. I tried pulling on the bulb, but it just pulled right out of the base. Hmm. Time for some excessive force. Using a screwdriver, I was able to peel away enough of the white plastic insert to get a good grip on it with pliers. That piece broke off, naturally. After about three attempts, I managed to grab a solid enough piece of the white plastic insert to yank the thing out of there.

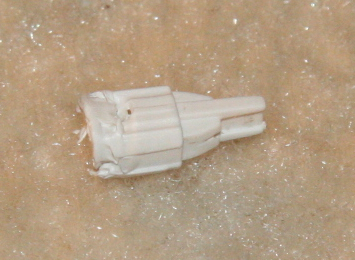

fuse bulb base

Once inside, I found that the socket was basically a normal socket, albeit stretched slightly. With a squeeze of my pliers to correct for the distortion caused by my screwdriver, I was able to get it to make constant contact without a bulb in the socket. At that point, the set lit. In the photo below, the "current limiting" bulb is at the middle at the bottom. The other socket is a standard socket, shown here for comparison.

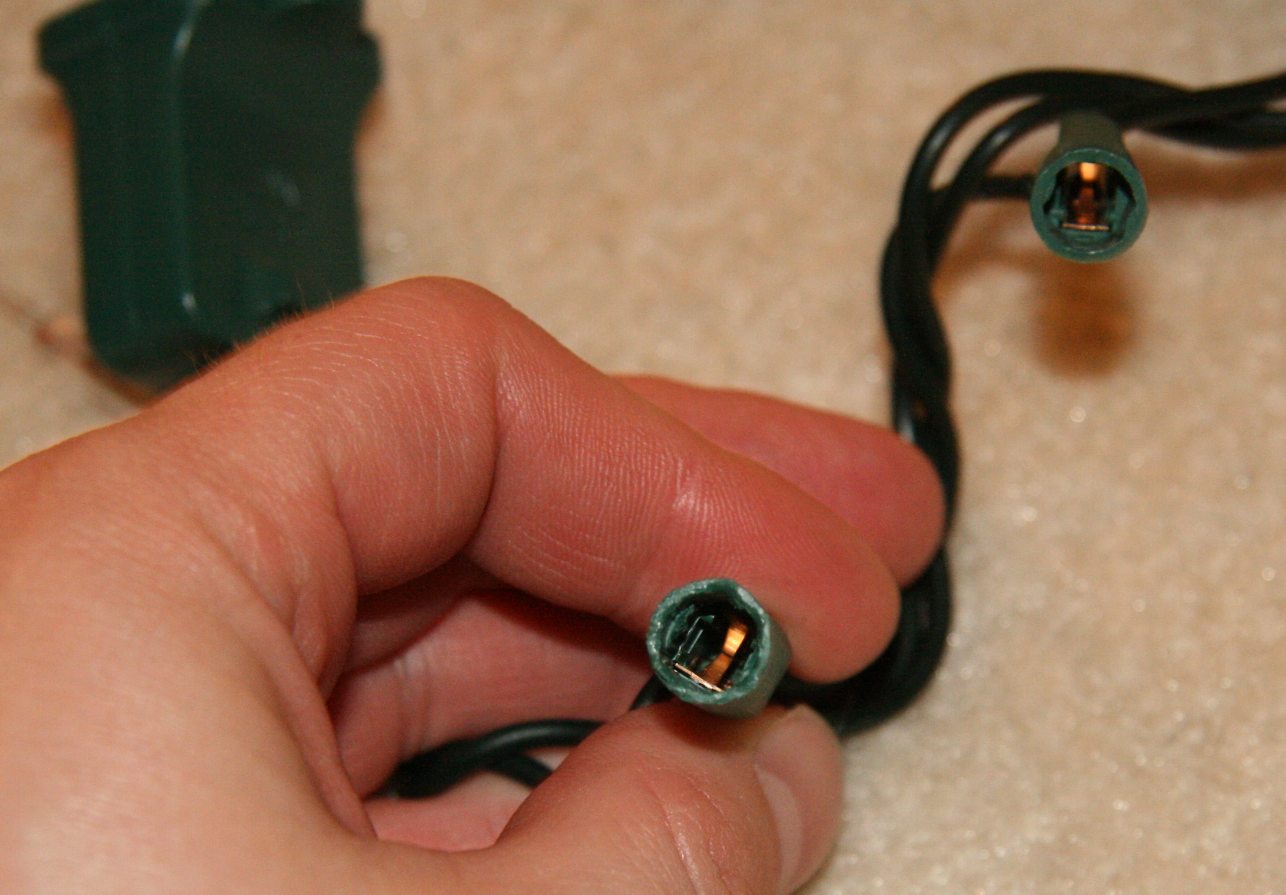

comparison of the sockets

Unfortunately, upon trying to put a bulb in that socket... well, it isn't quite a normal socket. The final repair step was altering a bulb base and the socket so that I could put a normal bulb in there. This was a two-part process. The first step was altering the base. In one direction (as shown in the photos below), the base is the same size (or at least close enough). In the other direction, a standard base was about 0.045 inches too large. Reducing the base size required some coarse grit sandpaper and about ten minutes of sanding.

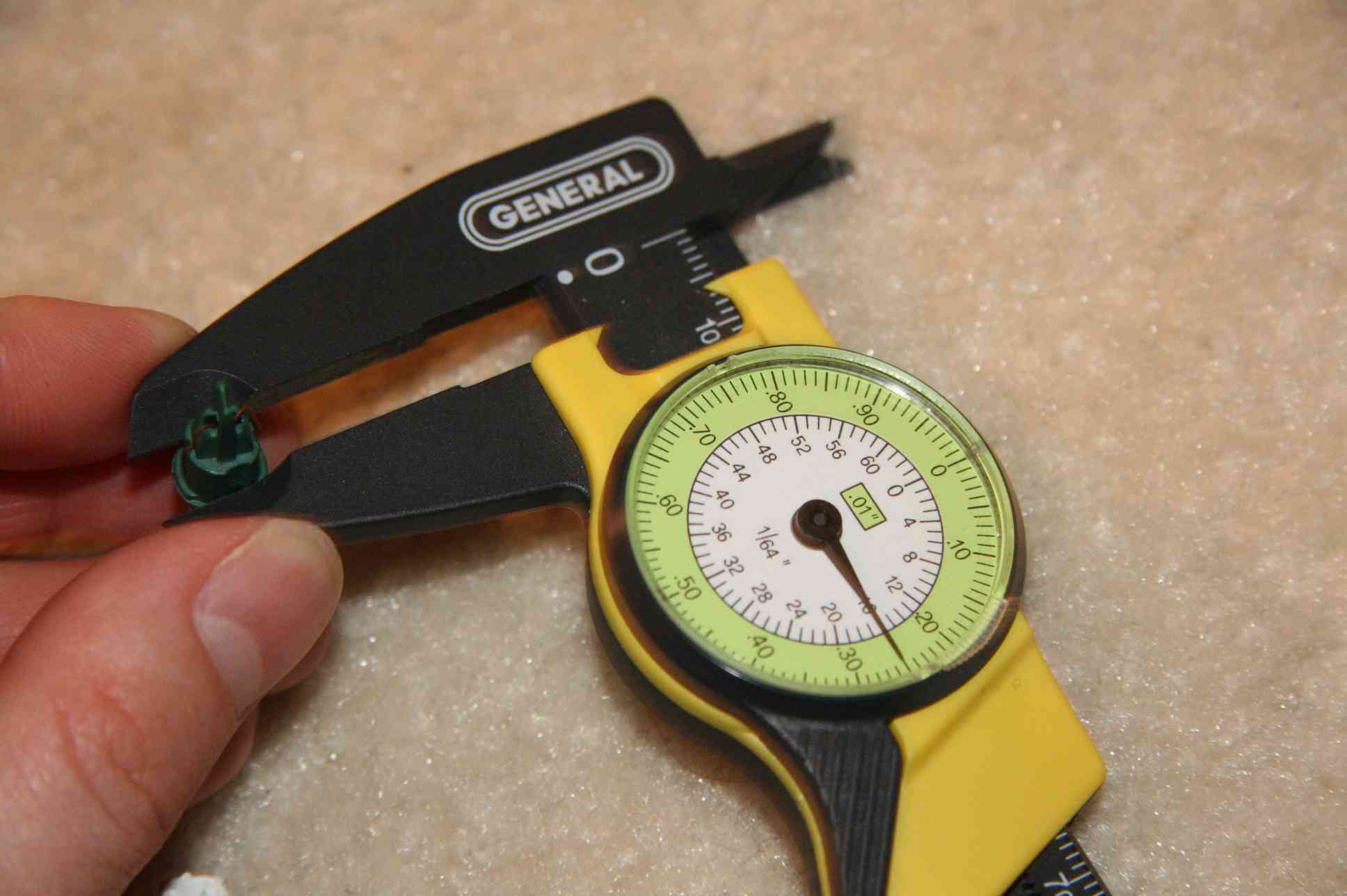

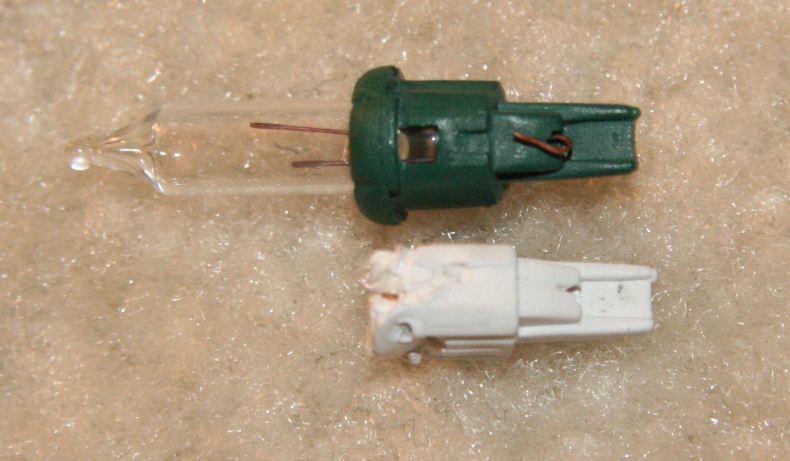

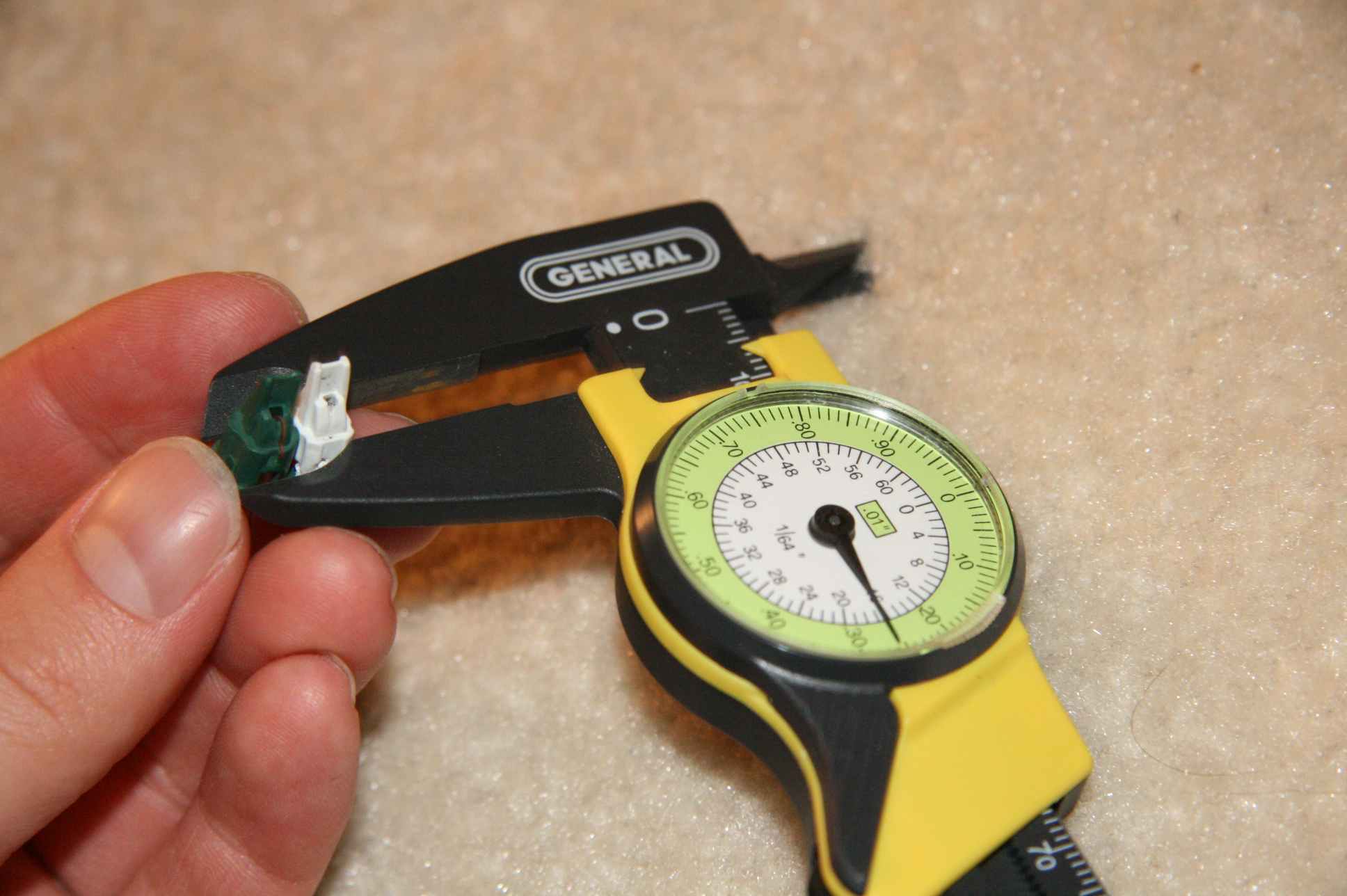

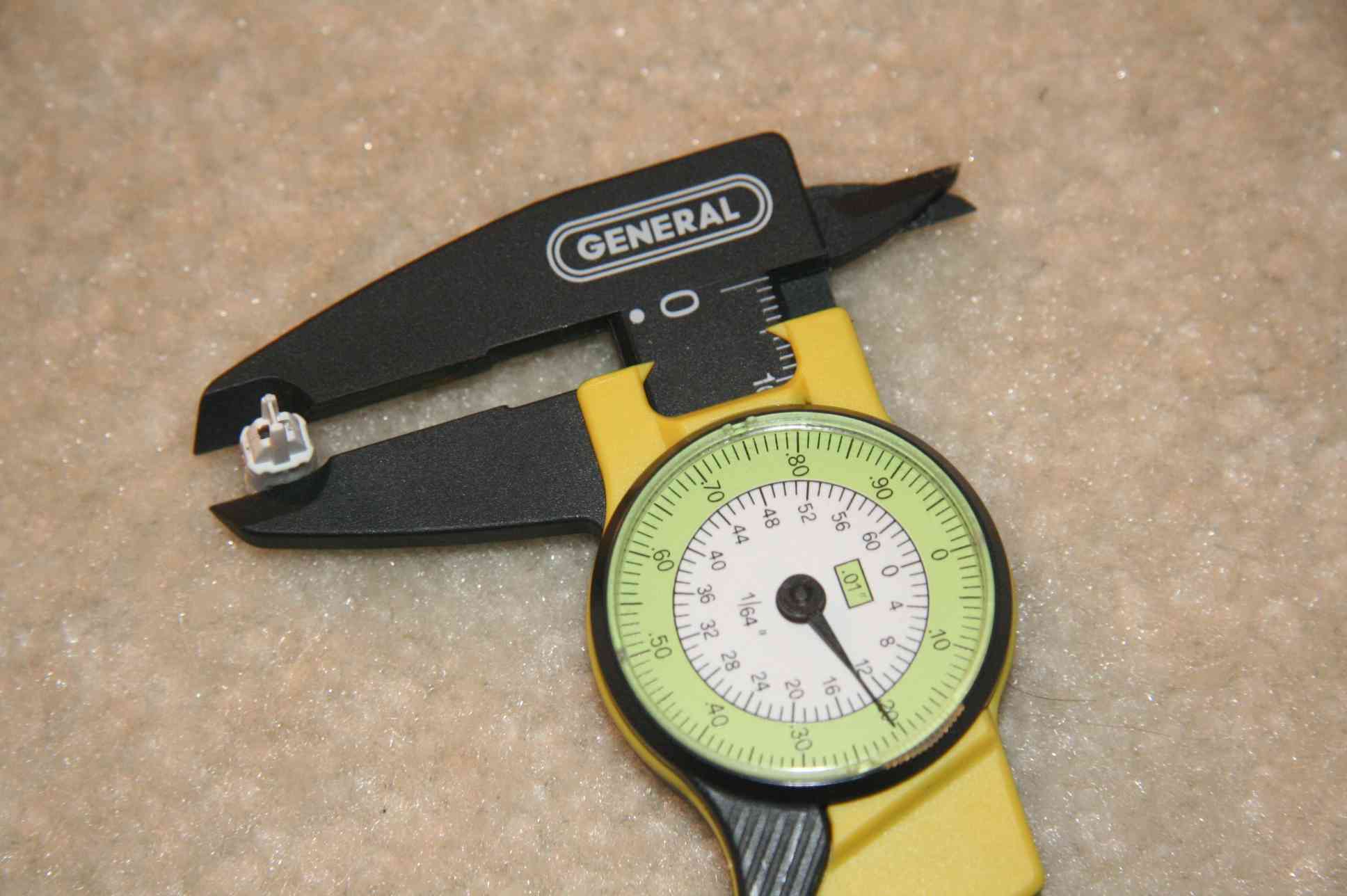

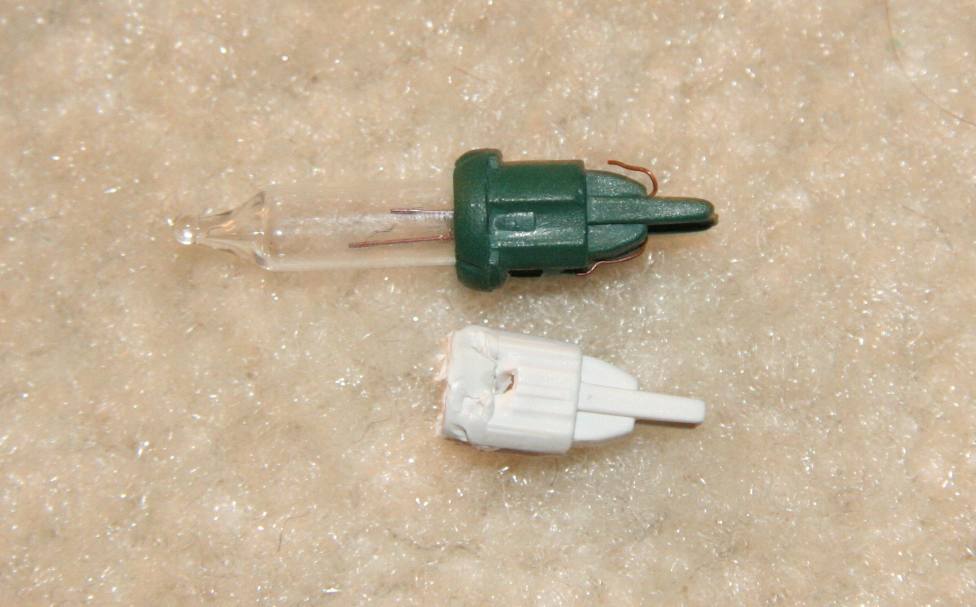

comparison of the bases comparison of the bases in a different orientation dimensions of both bases in the large direction dimensions of the fuse bulb base in the small direction dimensions of a standard base in the small direction

In addition to filing down the side, I also had to file down a little bit of the thickness of the rim on the other two sides because the bulb would only go down far enough to break the contacts inside the socket (with some pressure) and not far enough to make contact with the bulb.

Finally, I reduced the height of the socket by sanding the end of it with coarse grit sandpaper. This gave the modified base the extra fraction of a millimeter it needed for the bulb's contacts to connect electrically with the socket.

All in all, I spent more than two hours tracking this down. Unless you are faced with the hassle of a dead branch on a pre-lit tree, this probably isn't worth the effort. That said, it was a mildly entertaining project that might be helpful for others faced with the same problem.

In my opinion, this product really diminishes the GE brand. It definitely does not live up to their usual standards. If I were in GE's position, I would significantly change several aspects of the design of this set.

First, the base should not have a center prong that extends so far past the contacts. This is the reason why the set has a blackout period when the bulbs are only partially inserted, making the "Constant on" feature pretty much useless in the real world, where a bulb is far more likely to be loose than missing.

Second, the "current limiting" bulb is absurd. You already have a fuse on the freaking cord. There's no reason to add a second protective device at all, much less one that cannot be replaced by the end user.

In hindsight, I realize that the socket for the "current limiting" bulb was probably distorted to begin with. Had GE made it so this bulb could be easily removed, I could probably have fixed this whole problem by squeezing the socket with pliers until the set came on. Unfortunately, because the barbed base of the "current limiting" bulb was specifically designed to be non-removable, it was not possible to determine the cause (or even to determine that resembled a standard socket down inside) without basically destroying the "current limiting" bulb's base.

GE should be ashamed of themselves for putting out a product with such fundamental design flaws.
